SPECIFICATIONS

Brand Name: VBNM

Case Size: 470*205*485mm

Case Type: Mid Tower

Case Weight: 10

Cooling Support: 360mm Water Cooling

Expansion Slots: 7 Slots

Form Factor: ATX,MicroATX,E-ATX

Front Ports: USB3.0 x1 / USB2.0 x2 / HD Audio

HDD Bays: 12*3.5" HDD+2*2.5" SSD

High-concerned chemical: None

Material: SPCC,SPCC Steel

Max CPU Cooler Height: 160mm

Max GPU Length: 400mm

Model Number: F20

Motherboard Support: E-ATX / ATX / M-ATX

Origin: Mainland China

Power Model: ATX

RGB Support: NO RGB

Side Panel: Solid Panel

Type: Mid Tower

With Power Supply: No

Important Notice

1. This product is a PC case only. Motherboard, CPU, GPU, PSU, fans, radiator and hard drivesare not included. 2. The front 360 / 280 / 240mm radiator installation requires removing the HDD cage. 3. Maximum GPU length is 290mm with HDD cage installed, and up to 400mm afterremoving the HDD cage.

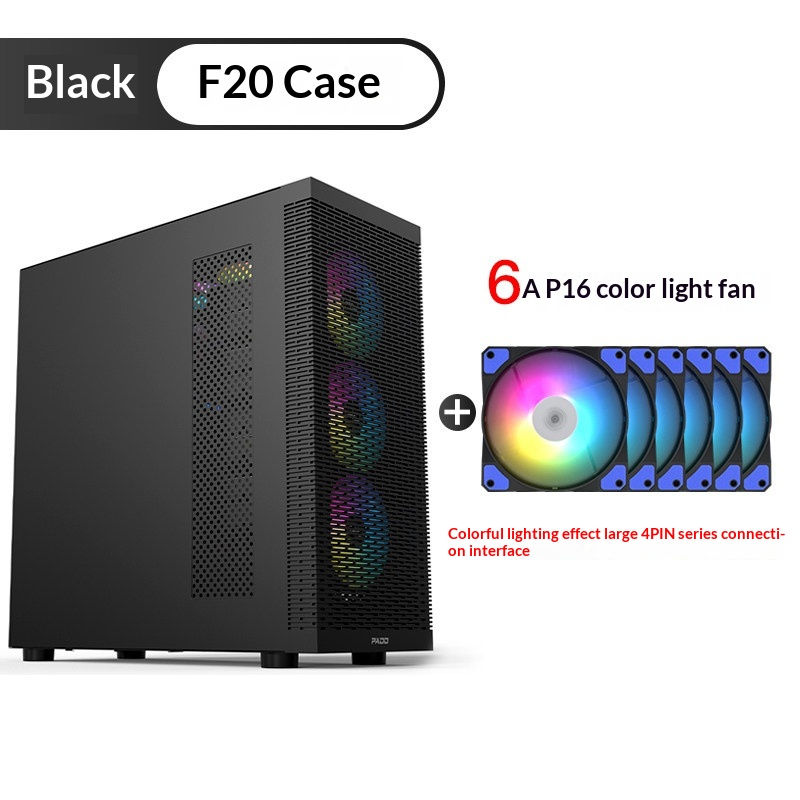

F20 E-ATX NAS PC Case

Designed for users who need large storage capacity and strong hardware compatibility, the F20 supports E-ATX / ATX / M-ATX motherboards, up to 12×3.5" HDDs and 2×2.5" SSDs. With a square mesh front panel and multi-direction airflow design, it provides better cooling performance for storage server, workstation and gaming PC builds. Key Features: 1.12-Bay HDD Storage Design Supports up to 12×3.5" HDDs and 2×2.5" SSDs, ideal for NAS, storage server and large-capacity PC builds. 2.Wide Motherboard Compatibility Compatible with E-ATX, ATX and M-ATX motherboards for flexible DIY installation. 3.High Airflow Front Panel Square mesh front panel improves air intake and helps reduce internal temperature. 4.Strong Hardware Compatibility Supports up to 400mm GPU after removing the HDD cage, 160mm CPU cooler and standard ATX power supply. 5.Water Cooling & Fan Support Supports front/top 360mm, 280mm and 240mm radiators, plus multiple 120mm / 140mm fans.
